Vacuum skin wrapping machine,high performance,ready stock
|
Key attributes |
|
|
Other attributes |
|
|
Warranty |
1.5 years |
|
Applicable Industries |
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory |
|
Showroom Location |
None |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty of core components |
1 Year |
|
Core Components |
Gearbox, Motor, Pump |
|
Place of Origin |
Guangdong, China |
|
Weight |
150 KG |
|
Key Selling Points |
Easy to Operate |
|
Type |
Other |
|
Condition |
New |
|
Application |
Food, Commodity, Medical, Machinery & Hardware, hardware, pcb, ferrite cores, hand tools, auto radiator |
|
Packaging Type |
vacuum skin packaging |
|
Packaging Material |
Plastic, skin packaging film |
|
Automatic Grade |
Semi-automatic |
|
Driven Type |
Mechanical |
|
Voltage |
220V, 380V |
|
Power |
6kw |
|
Brand Name |
Promivision Skin Packaging |
|
Dimension(L*W*H) |
70 X 90 X 120CM |
|
Heating System |
Impulse heating |
|
Packing speed |
High |
|
Frame up and down |
Automatic |
|
Type |
Packing Machine |
|
Packaging and delivery |
|
|
Packaging Details |
Packed in standard export wooden case. Fumigation free plywood case packing. |
|
Port |
Shenzhen |
|
Attribute-list |
|
|
Supply Ability |
200 Set/Sets per Month |
Product descriptions from the supplier

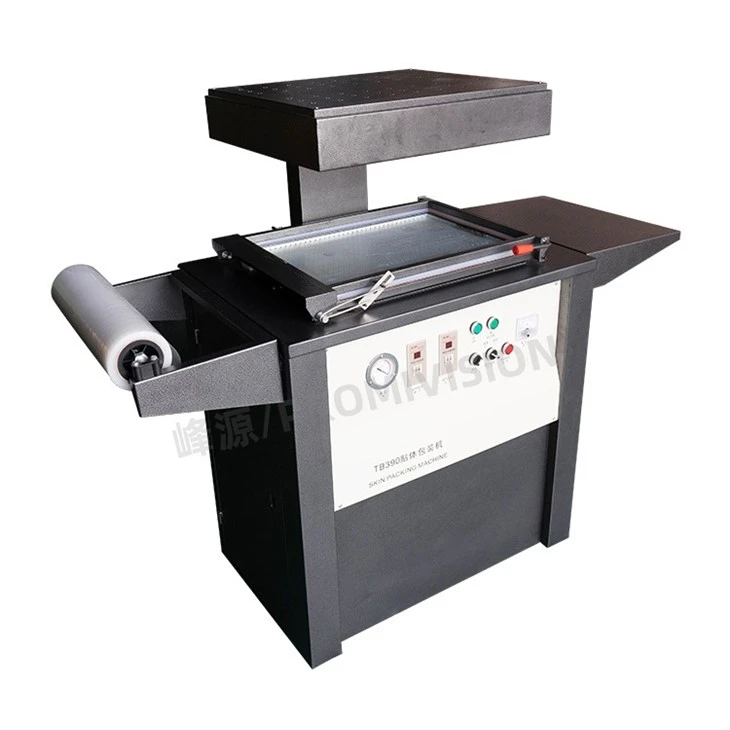

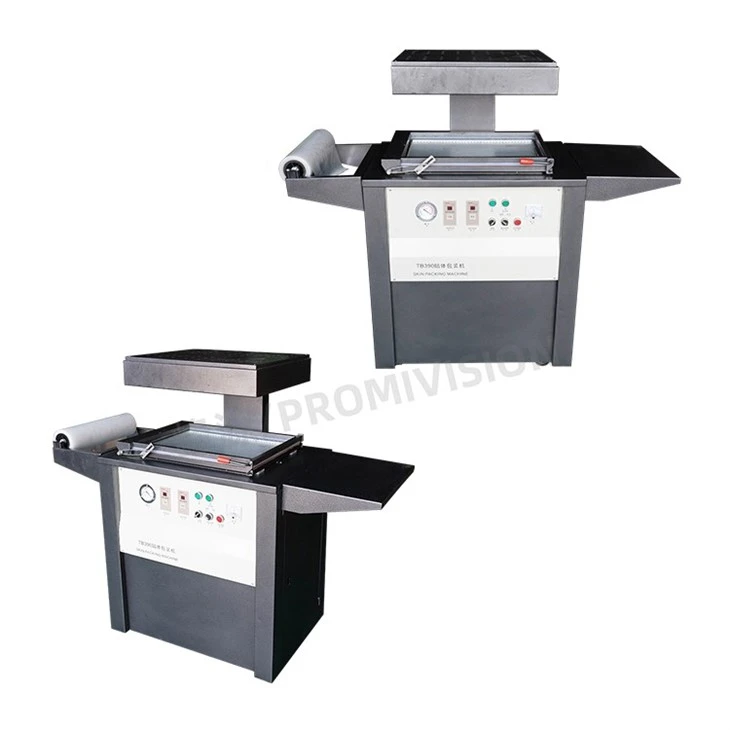

Vacuum skin wrapper, skin wrapping machine
Promivision, the leading manufacturer from China with 13 years expertise in skin packaging, specializes in skin packaging film, surlyen film, skin packaging machines, skin pack film, skin pack glue, porous paper board, vacuum protective packaging machine for PCB/ferrite cores, etc. Our products are exported to all over the world, universally used in the packaging of a wide range of products and industries. Our skin packaging films comply with SGS, ROHS regulations, and our skin packaging machines are CE certified.
PROMIVISION®, The Leading Excellence In Vacuum Skin Packaging Machines
Vacuum skin wrapper, vacuum skin wrapping machine:
Model No.: TB-390
Specification
|
Working Area |
L540*W390*H140m/m |
|
Film Width Applied |
450~460m/m(18") |
|
Frame Height |
Max.23CM |
|
Heater |
6KW |
|
Vacuum Pump |
1HP, America Made vacuum pump with strong displacement |
|
Speed |
3-4cycles/min |
|
Power |
220V 1PH 50/60HZ, 380V, 3PH, 50/60HZ |
|
Machine Size |
L70*W90*H122CM |
Main Features
1. In-feed-out-feed direction: Front-in, Right-out.
2. Fixed heater oven with impulse heating system for energy saving.
3. Special tubular heaters alignment for even heat distribution.
4. Compact design requiring small floor space.
5. It can be used in line with assembly line for enhanced efficiency.
6. Other standard working area such as 440 X 590mm, 540 X 790mm X 400 X 700mm are also available.
7. Other special sizes can be tailor-made.
PROMIVISION® Full Range of Skin Packager/Skin Packer:
|
Model No. |
TB-390 (Economical) |
PV-5540 (Semi-auto) |
PV-4560 (Automatic) |
PV-5580 (Automatic) |
|
Working Area |
L54*W39*H14cm |
L40*W55*H14cm |
L60 * W45 *H18CM |
L80*W55*H18cm |
|
Film Width |
450-460m/m(18") |
609-615m/m(24") |
500-510mm |
609-615m/m(24") |
|
Frame Height |
Max 19cm |
Max 19cm |
Max. 23CM |
Max 23cm |
|
Heater |
6KW |
4.5KW |
6KW |
11.7KW |
|
Vacuum Pump |
1HP |
2HP |
4HP |
4HP |
|
Speed |
1-3cycle/min |
2-4cycle/min |
2-4cycle/min |
3-4cycle/min |
|
Power |
380V,3PH,50/60HZ |
220V,1PH,50/60HZ |
220V,1PH,50/60HZ |
380V,3PH,50/60HZ |
|
Dimension LxWxH |
100*90*122CM |
131*77*130CM |
164*120*130CM |
225*153*164CM |
Skin Packaging Aesthetics Interpreted by PROMIVISION®:
